This page is used to create institution-defined Relationship Labels that are used to describe (i.e. 'label') the relationship between items in a Structure (CRSW2600) or Dependencies (CRSW2600).
Relationship Labels created in this page constitute the drop-down Selector values for the first Relationship Description field in the Add pop-up page (CRSW2605). (For more information, see Relationship Description Fields, below.)
Relationship Labels are used in conjunction with Relationship Qualifiers (CRSW0110) and Relationship Qualifier Attributes (CRSW0115) when adding an item via the Add pop-up page (CRSW2605). (For more information, see Relationship Description Fields, below.)
Each institution-defined Relationship Label must be mapped to a System Relationship Label.
Different System Relationship Labels are available for Course and Unit Set Structures, and Course, Unit Set and Unit Dependencies. (See the list of System Relationship Labels, below.)
To use this page, it is expected that you will be an administrator who is authorised to set up reference data for Structures (CRSW2600).
For more information, see the Structures Overview Help page.
This page is accessed directly from the main menu.
Figure 2: Page Navigation
---------------------------------------------------------------------
On accessing the Relationship Labels (List) page (CRSW0120) from the main menu, a list of Relationship Labels is displayed. The following actions can be performed from this page:
For field information, see Field Descriptions, below.
The following table describes each field on the Relationship Labels (List) page and New Relationship Label pop-up page, including applicable Table values.
An asterisk (*) indicates the field is mandatory.
| Field: | Description: |
|---|---|
| *Relationship Label | Institution-defined Relationship Label. Enter a unique value, up to 10 characters in length. This value must be mapped to a System Relationship Label (see below). Table value: |
| *Display Text | Name of the Relationship Label. This field can contain up to 40 characters. The Display Text you add here for the Relationship Label will be available in the list of Selector values on the Relationship Description field (first field) in the Add pop-up page (CRSW2605), accessed from a Structure or Dependencies (CRSW2600). If this value is selected as a Relationship Description then it will constitute part of the 'label' that is displayed in the Relationship ('bubble' shape) that is created when adding items in a a Structure or Dependencies (CRSW2600). (A Relationship Qualifier (CRSW0110), quantifier value, and Relationship Qualifier Attribute (CRSW0115) make up the rest of the Relationship Label.) Table value: |
| *Description | Description of the Relationship Label. Enter a description of the Relationship Label. You can enter up to 60 characters. |
| *System Relationship Label | The System Relationship Label to which the institution-defined label is mapped. Select a value from the selector. (For a list of all system values, see the list of System Relationship Labels, below.) Table value: |
| System Default | Select this indicator to make this Relationship Label the default value that is required to pre-populate the Add pop up when adding rules in the Curriculum viewer. Table value: |
| Default Relationship Qualifier | If a Relationship Label that is set as default, then a Default Relationship Qualifier must be defined. Conversely, a Relationship Label that is not set as default cannot have a Default Relationship Qualifier defined. Table value: |
| Closed | Indicates if the Relationship Label is Open or Closed. Select the checkbox to close the Relationship Label. it will no longer appear in the list of values for the Relationship Description field in the Structure and Dependencies pages (CRSW2600). Table value: |
Different System Relationship Labels are available for selection in the Add pop-up page depending on whether the Structure is a Course or Unit Set Structure, or the Dependencies is for a Course, Unit Set or Unit.
The following tables describe the different types of System Relationship Labels for Structures and Dependencies.
Note: 'Branch 1' refers to the first level or layer in a Structure or Dependencies. (See Figure 2 in Structures and Dependencies (CRSW2600).)
Structure - System Relationship Labels:
| System Relationship Labels: | Description: | Types of Structures in which it is used: | Branch to which it applies: |
|---|---|---|---|
| CRS_STRUCT | Course-specific label | Course Structures | All |
| OTHER | Enables the definition of ad hoc Structure label | Course & Unit Set Structures | All |
| US_STRUCT | Unit Set-specific label | Unit Set Structures | All |
Dependencies - System Relationship Labels:
| System Relationship Labels: | Description: | Dependencies in which it is used: | Branch to which it applies: |
|---|---|---|---|
| ALT_EXIT | Alternative exit. Note: Only available when adding a Relationship to the parent curriculum item located at the top of the hierarchy. |
Course Dependencies | Branch 1 only |
| ARTICULATE | Articulated course. Note: Only available when adding a Relationship to the parent curriculum item located at the top of the hierarchy. |
Course Dependencies | Branch 1 only |
| COREQ | Corequisite. Note: Only available when adding a Relationship to the parent curriculum item located at the top of the hierarchy. |
Unit Set & Unit Dependencies | Branch 1 only |
| DEPENDENCY | Enables the definition of ad hoc Dependencies labels. Note: Only available when adding a Relationship to an existing Relationship. |
Course, Unit Set & Unit Dependencies | Branch 2 + (i.e. all branches except Branch 1) |
| INCOMP | Unit and unit set incompatible. Note: Only available when adding a Relationship to the parent curriculum item located at the top of the hierarchy. |
Unit Set & Unit Dependencies | Branch 1 only |
| PREREQ | Unit and unit set prerequisite. Note: Only available when adding a Relationship to the parent curriculum item located at the top of the hierarchy. |
Unit Set & Unit Dependencies | Branch 1 only |
| TRANS | Translation set. Note: Only available when adding a Relationship to the parent curriculum item located at the top of the hierarchy. |
Unit Dependencies | Branch 1 only |
'Relationship Description' fields constitute the label displayed in a Relationship (bubble shape) in a Structure or Dependencies (CRSW2600).
A Relationship Label is used in conjunction with:
to populate the Relationship Description fields in the Add pop-up page (CRSW2605) (see the following diagram).
Note: The Relationship Label you select for the first field determines which Relationship Qualifiers (CRSW0110) are available for selection for the subsequent Relationship Qualifier (CRSW0110) field. See the 'System Relationship Qualifiers' section of the Relationship Qualifiers (CRSW0110) Help page.

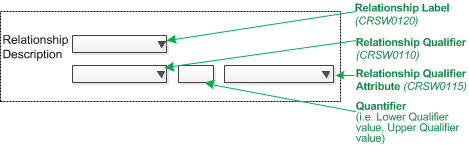

Figure 1: Relationship Description fields in the Add pop-up page (CRSW2605) in Structures and Dependencies (CRSW2600).
---------------------------------------------------------------------
This page is one of several Reference Data pages that are used to set up data required in Structures (CRSW2600).
For more information, see the Structures Overview Help page.
